特性Features
适合贴片机组装 Suitable for SMT
短小轻薄 Small Size &Light Weight
符合RoHS和无卤标准 Meet RoHS &HF Requirement
应用Application
一般用途 General Purpose
通用型 Universal type
构造Construction 功率衰减曲线Power decay curve

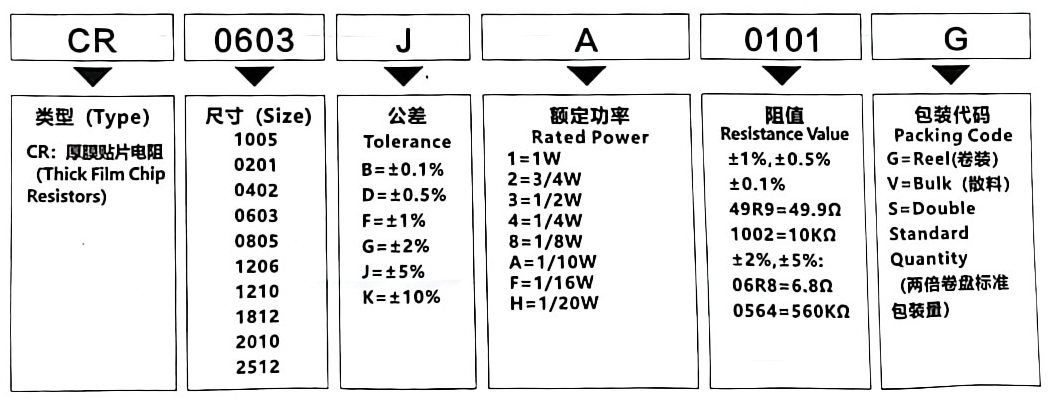

订货方式(例如06035% 1/10W 100Ω)
Ordering Procedure(Example 0603 1/10W 5%100Ω)
料号(Part Number) : CR0603JA0101G
标准包装数量Standard Packing Quantity
01005 20,000Pcs Per Reel(每卷20,000Pcs)
0201/0402: 10,000Pcs Per Reel(每卷10,000Pcs)
0603/0805/1206/1210: 5,000Pcs Per Reel(每卷5,000Pcs)
1812/2010/2512: 4,000Pcs Per Reel(每卷4,000Pcs)
备 注: 1005为01005规格
Remark: 1005 is 01005 size
规格Specifications
|
类型Type |
CR1005 |
CR0201 |
CR0402 |
CR0603 |
CR0805 |
CR1206 |
CR1210 |
CR1812 |
CR2010 |
CR2512 |
|
额定功率 70℃Rated Power at 70℃ |
1/32W |
1/20W |
1/16W |
1/10W |
1/8W |
1/4W |
1/2W |
1/2W |
3/4W |
1W |
|
最大工作電壓 Max Working Voltage |
15V |
25V |
50V |
75V |
150V |
200V |
200V |
200V |
200V |
200V |
|
最大過負荷電壓 Max Overload Voltage |
30V |
50V |
100V |
150V |
300V |
400V |
500V |
500V |
500V |
500V |
|
绝缘耐压 Dielectric WithStanding Voltage |
30V |
75V |
150V |
220V |
430V |
570V |
710V |
710V |
710V |
710V |
|
操作温度范围 Operating Temperature |
-55-+125℃ |
-55~+125℃ |
-55~+155℃ |
-55~+155℃ |
-55~+155℃ |
-55~+155℃ |
-55~+155℃ |
-55~+155℃ |
-55~+155℃ |
-55~+155℃ |
|
零欧姆电阻阻值 Resistance Value of Jumper |
<50mΩ |
<50mΩ |
<50mΩ |
<50mΩ |
<50mΩ |
<50mΩ |
<50mΩ |
<50mΩ |
<50mΩ |
<50mΩ |
|
零欧姆额定电流 Rated Current of Jumper |
0.5A |
0.5A |
1.0A |
1.0A |
2.0A |
2.0A |
2.0A |
2.0A |
2.0A |
2.0A |
|
零欧姆电阻最大电流 Max Current of Jumper |
1.0A |
1.0A |
2.0A |
2.0A |
5.0A |
10.0A |
10.0A |
10.0A |
10.0A |
10.0A |
|
0.5%阻值范围 Resistance Range of 0.5% |
. |
. |
10Ω-1MΩ |
10Ω-1MΩ |
10Ω-1MΩ |
10Ω-1MΩ |
10Ω-1MΩ |
10Ω-1MΩ |
10Ω-1MΩ |
10Ω-1MΩ |
|
1%阻值范围 Resistance Range of 1% |
1Ω-10MΩ |
1Ω-10MΩ |
1Ω~22MΩ |
1Ω~22MΩ |
1Ω~22MΩ |
1Ω~22MΩ |
1Ω~22MΩ |
1Ω-10MΩ |
1Ω-22MΩ |
1Ω-22MΩ |
|
2%阻值范围 Resistance Range of 2% |
1Ω-10MΩ |
1Ω-10MΩ |
1Ω~22MΩ |
1Ω~22MΩ |
1Ω~22MΩ |
1Ω~22MΩ |
1Ω~22MΩ |
1Ω-10MΩ |
1Ω~22MΩ |
1Ω-22MΩ |
|
5%阻值范围 Resistance Range of 5% |
1Ω-10MΩ |
1Ω-10MΩ |
1Ω~100MΩ |
1Ω~100MΩ |
1Ω~100MΩ |
1Ω~100MΩ |
1Ω~100MΩ |
1Ω-10MΩ |
1Ω~100MΩ |
1Ω~100MΩ |

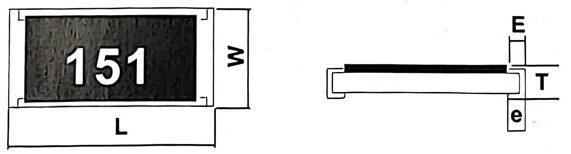

外形尺寸Dimension
|
类型Type |
CR1005 |
CR0201 |
CR0402 |
CR0603 |
CR0805 |
CR1206 |
CR1210 |
CR1812 |
CR2010 |
CR2512 |
|
|
尺寸 Dimension |
L(mm) |
0.40±0.02 |
0.60±0.03 |
1.00±0.05 |
1.60±0.10 |
2.00±0.15 |
3.10±0.15 |
3.10±0.15 |
4.50±0.20 |
5.00±0.20 |
6.25±0.20 |
|
W(mm) |
0.20±0.02 |
0.30±0.03 |
0.50±0.05 |
0.80±0.10 |
1.25±0.15 |
1.60±0.15 |
2.50±0.15 |
3.10±0.20 |
2.50±0.20 |
3.10±0.20 |
|
|
T(mm) |
0.13±0.02 |
0.23±0.03 |
0.30±0.05 |
0.45±0.10 |
0.50±0.10 |
0.55±0.10 |
0.55±0.15 |
0.55±0.15 |
0.55±0.15 |
0.55±0.15 |
|
|
E(mm) |
0.10±0.03 |
0.10±0.05 |
0.15±0.10 |
0.25±0.20 |
0.35±0.20 |
0.45±0.25 |
0.35±0.25 |
0.55±0.20 |
0.65±0.25 |
0.85±0.25 |
|
|
e(mm) |
0.11±0.03 |
0.15±0.05 |
0.20±0.10 |
0.30±0.20 |
0.40±0.20 |
0.40±0.25 |
0.60±0.25 |
0.70±0.20 |
0.50±0.25 |
0.95±0.25 |
|
性能Performance Specifications
|
内容Item |
测试方法Test Methods |
规格Specification Limits |
|
温度系数 Temperature Coefficient |
JIS C5201 4.8 |
01005规格: 1Ω≤R≤10Ω:-200~+600PPM/℃ 10Ω≤R≤10MΩ:±250PPM/℃ 0201规格: 1Ω≤R≤10Ω:-100~+300PPM/℃ 10Ω≤R≤10MΩ: 200PPM/℃ 0402~2512规格: 1Ω≤R≤10Ω:±200PPM/℃ 10Ω≤R≤10MΩ:±100PPM/℃ 10MΩ≤R≤100MΩ:±200PPM/℃ |
|
焊锡性 Solderability |
JIS C52014.17 |
最少95%面积上锡(Min95%coverage) |
|
绝缘电阻 Insulation Resistance |
JIS C52014.6 |
>10 GΩ |
|
绝缘耐压 Dielectric Withstanding Voltage |
JIS C52014.7 |
无击穿、飞弧及可见机械性损伤 No evidence of flashover,mechanical damage arcing or insulation breakdown |
|
短时间过负荷 Short-Time Overload |
JIS C52014.13 |
±(1.0%+0.05Ω)Max(最大) |
|
端子弯曲 Terminal Bending |
JIS C52014.33 |
±(1.0%+0.05Ω)Max(最大) |
|
抗焊锡热 Resist to Soldering Heat |
JIS C52014.18 |
±(1.0%+0.05Ω)Max(最大) |
|
负荷寿命 LoadLife |
JIS C52014.25.1 |
±(2.0%+0.05Ω)Max(最大) |
|
耐湿特性 Humidity |
JIS C52014.24 |
±(2.0%+0.05Ω)Max(最大) |
|
温度循环 Temperature Cycling |
JIS C5201 4.19 |
±(2.0%+0.05Ω)Max(最大) |
|
温湿循环 Moisture Resistance |
MIL-STD-202 METHOD106 |
±(2.0%+0.05Ω)Max(最大) |
E24系列的标准阻值代码Standard E24 series Resistance Code
|
1.0、1.1、1.2、1.3、1.5、1.6、1.8、2.0、2.2、2.4、2.7、3.0、3.3、3.6、3.9、4.3、4.7、5.1、5.6、6.2、6.8、7.5、8.2、9.1 |
0603±1%E96系列的标准阻值代码
Standard E96 Series Resistance Value Code For 0603±1%Marking
|
代码 Code |
阻值 Value |
代码 Code |
阻值 Value |
代码 Code |
阻值 Value |
代码 Code |
阻值 Value |
代码 Code |
阻值 Value |
代码 Code |
阻值 Value |
|
01 |
100 |
17 |
147 |
33 |
215 |
49 |
316 |
65 |
464 |
81 |
681 |
|
02 |
102 |
18 |
150 |
34 |
221 |
50 |
324 |
66 |
475 |
82 |
698 |
|
03 |
105 |
19 |
154 |
35 |
226 |
51 |
332 |
67 |
487 |
83 |
715 |
|
04 |
107 |
20 |
158 |
36 |
232 |
52 |
340 |
68 |
499 |
84 |
732 |
|
05 |
110 |
21 |
162 |
37 |
237 |
53 |
348 |
69 |
511 |
85 |
750 |
|
06 |
113 |
22 |
165 |
38 |
243 |
54 |
357 |
70 |
523 |
86 |
768 |
|
07 |
115 |
23 |
169 |
39 |
249 |
55 |
365 |
71 |
536 |
87 |
787 |
|
08 |
118 |
24 |
174 |
40 |
255 |
56 |
374 |
72 |
549 |
88 |
806 |
|
09 |
121 |
25 |
178 |
41 |
261 |
57 |
383 |
73 |
562 |
89 |
825 |
|
10 |
124 |
26 |
182 |
42 |
267 |
58 |
392 |
74 |
576 |
90 |
845 |
|
11 |
127 |
27 |
187 |
43 |
274 |
59 |
402 |
75 |
590 |
91 |
866 |
|
12 |
130 |
28 |
191 |
44 |
280 |
60 |
412 |
76 |
604 |
92 |
887 |
|
13 |
133 |
29 |
196 |
45 |
287 |
61 |
422 |
77 |
619 |
93 |
909 |
|
14 |
137 |
30 |
200 |
46 |
294 |
62 |
432 |
78 |
634 |
94 |
931 |
|
15 |
140 |
31 |
205 |
47 |
301 |
63 |
442 |
79 |
649 |
95 |
953 |
|
16 |
143 |
32 |
210 |
48 |
309 |
64 |
453 |
80 |
665 |
96 |
976 |
0603±1%E96系列的指数代码Multiplier Code For 0603±1%Marking
|
代码Code |
Y |
X |
A |
B |
C |
D |
E |
F |
G |
|
指数Multiplier |
10’² |
10⁻¹ |
10° |
10' |
10² |
10³ |
10° |
10³ |
10° |
标E-24 series standard resistance value &the codes to be used in the part NO. system 5%&10%tolerance(4 digits, start with“O”):
E-24系列标准阻值和料号系统使用代码(4位，以0为首位，5%、10%公差)：
|
阻值 Value |
代码 Code |
阻值 Value |
代码 Code |
阻值 Value |
代码 Code |
阻值 Value |
代码 Code |
阻值 Value |
代码 Code |
阻值 Value |
代码 Code |
阻值 Value |
代码 Code |
|||
|
1.0Ω |
01R0 |
10Ω |
0100 |
100Ω |
0101 |
1.0KΩ |
0102 |
10KΩ |
0103 |
100KΩ |
0104 |
1.0MΩ |
0105 |
|||
|
1.1Ω |
01R1 |
11Ω |
0110 |
110Ω |
0111 |
1.1KΩ |
0112 |
11KΩ |
0113 |
110KΩ |
0114 |
1.1MΩ |
0115 |
|||
|
1.2Ω |
01R2 |
12Ω |
0120 |
120Ω |
0121 |
1.2KΩ |
0122 |
12KΩ |
0123 |
120KΩ |
0124 |
1.2MΩ |
0125 |
|||
|
1.3Ω |
01R3 |
13Ω |
0130 |
130Ω |
0131 |
1.3KΩ |
0132 |
13KΩ |
0133 |
130KΩ |
0134 |
1.3MΩ |
0135 |
|||
|
1.5Ω |
01R5 |
15Ω |
0150 |
150Ω |
0151 |
1.5KΩ |
0152 |
15KΩ |
0153 |
150KΩ |
0154 |
1.5MΩ |
0155 |
|||
|
1.6Ω |
01R6 |
16Ω |
0160 |
160Ω |
0161 |
1.6KΩ |
0162 |
16KΩ |
0163 |
160KΩ |
0164 |
1.6MΩ |
0165 |
|||
|
1.8Ω |
01R8 |
18Ω |
0180 |
180Ω |
0181 |
1.8KΩ |
0182 |
18KΩ |
0183 |
180KΩ |
0184 |
1.8MΩ |
0185 |
|||
|
2.0Ω |
02R0 |
20Ω |
0200 |
200Ω |
0201 |
2.0KΩ |
0202 |
20KΩ |
0203 |
200KΩ |
0204 |
2.0MΩ |
0205 |
|||
|
2.2Ω |
02R2 |
22Ω |
0220 |
220Ω |
0221 |
2.2KΩ |
0222 |
22KΩ |
0223 |
220KΩ |
0224 |
2.2MΩ |
0225 |
|||
|
2.4Ω |
02R4 |
24Ω |
0240 |
240Ω |
0241 |
2.4KΩ |
0242 |
24KΩ |
0243 |
240KΩ |
0244 |
2.4MΩ |
0245 |
|||
|
2.7Ω |
02R7 |
27Ω |
0270 |
270Ω |
0271 |
2.7KΩ |
0272 |
27KΩ |
0273 |
270KΩ |
0274 |
2.7MΩ |
0275 |
|||
|
3.0Ω |
03R0 |
30Ω |
0300 |
300Ω |
0301 |
3.0KΩ |
0302 |
30KΩ |
0303 |
300KΩ |
0304 |
3.0MΩ |
0305 |
|||
|
3.3Ω |
03R3 |
33Ω |
0330 |
330Ω |
0331 |
3.3KΩ |
0332 |
33KΩ |
0333 |
330KΩ |
0334 |
3.3MΩ |
0335 |
|||
|
3.6Ω |
03R6 |
36Ω |
0360 |
360Ω |
0361 |
3.6KΩ |
0362 |
36KΩ |
0363 |
360KΩ |
0364 |
3.6MΩ |
0365 |
|||
|
3.9Ω |
03R9 |
39Ω |
0390 |
390Ω |
0391 |
3.9KΩ |
0392 |
39KΩ |
0393 |
390KΩ |
0394 |
3.9MΩ |
0395 |
|||
|
4.3Ω |
04R3 |
43Ω |
0430 |
430Ω |
0431 |
4.3KΩ |
0432 |
43KΩ |
0433 |
430KΩ |
0434 |
4.3MΩ |
0435 |
|||
|
4.7Ω |
04R7 |
47Ω |
0470 |
470Ω |
0471 |
4.7KΩ |
0472 |
47KΩ |
0473 |
470KΩ |
0474 |
4.7MΩ |
0475 |
|||
|
5.1Ω |
05R1 |
51Ω |
0510 |
510Ω |
0511 |
5.1KΩ |
0512 |
51KΩ |
0513 |
510KΩ |
0514 |
5.1MΩ |
0515 |
|||
|
5.6Ω |
05R6 |
56Ω |
0560 |
560Ω |
0561 |
5.6KΩ |
0562 |
56KΩ |
0563 |
560KΩ |
0564 |
5.6MΩ |
0565 |
|||
|
6.2Ω |
06R2 |
62Ω |
0620 |
620Ω |
0621 |
6.2KΩ |
0622 |
62KΩ |
0623 |
620KΩ |
0624 |
6.2MΩ |
0625 |
|||
|
6.8Ω |
06R8 |
68Ω |
0680 |
680Ω |
0681 |
6.8KΩ |
0682 |
68KΩ |
0683 |
680KΩ |
0684 |
6.8MΩ |
0685 |
|||
|
7.5Ω |
07R5 |
75Ω |
0750 |
750Ω |
0751 |
7.5KΩ |
0752 |
75KΩ |
0753 |
750KΩ |
0754 |
7.5MΩ |
0755 |
|||
|
8.2Ω |
08R2 |
82Ω |
0820 |
820Ω |
0821 |
8.2KΩ |
0822 |
82KΩ |
0823 |
820KΩ |
0824 |
8.2MΩ |
0825 |
|||
|
9.1Ω |
09R1 |
91Ω |
0910 |
910Ω |
0911 |
9.1KΩ |
0912 |
91KΩ |
0913 |
910KΩ |
0914 |
9.1MΩ |
0915 |
|||
|
|
10MΩ |
0106 |
||||||||||||||
E-96 series standard resistance value &the codes to be used in the part NO. system not over 2%tolerance (4 digits):
E-96系列标准阻值和料号系统使用代码(4位,0.1%,0.25%,0.5%,1%,2%公差):
|
阻值 Value |
代码 Code |
阻值 Value |
代码 Code |
阻值 Value |
代码 Code |
阻值 Value |
代码 Code |
阻值 Value |
代码 Code |
阻值 Value |
代码 Code |
阻值 Value |
代码 Code |
阻值 Value |
代码 Code |
|
10.0Ω |
10R0 |
17.8Ω |
17R8 |
31.6Ω |
31R6 |
56.2Ω |
56R2 |
100Ω |
1000 |
178Ω |
1780 |
316Ω |
3160 |
562Ω |
5620 |
|
10.2Ω |
10R2 |
18.2Ω |
18R2 |
32.4Ω |
32R4 |
57.6Ω |
57R6 |
102Ω |
1020 |
182Ω |
1820 |
324Ω |
3240 |
576Ω |
5760 |
|
10.5Ω |
10R5 |
18.7Ω |
18R7 |
33.2Ω |
33R2 |
59.0Ω |
59R0 |
105Ω |
1050 |
187Ω |
1870 |
332Ω |
3320 |
590Ω |
5900 |
|
10.7Ω |
10R7 |
19.1Ω |
19R1 |
34.0Ω |
34R0 |
60.4Ω |
60R4 |
107Ω |
1070 |
191Ω |
1910 |
340Ω |
3400 |
604Ω |
6040 |
|
11.0Ω |
11R0 |
19.6Ω |
19R6 |
34.8Ω |
34R8 |
61.9Ω |
61R9 |
110Ω |
1100 |
196Ω |
1960 |
348Ω |
3480 |
619Ω |
6190 |
|
11.3Ω |
11R3 |
20.0Ω |
20R0 |
35.7Ω |
35R7 |
63.4Ω |
63R4 |
113Ω |
1130 |
200Ω |
2000 |
357Ω |
3570 |
634Ω |
6340 |
|
11.5Ω |
11R5 |
20.5Ω |
20R5 |
36.5Ω |
36R5 |
64.9Ω |
64R9 |
115Ω |
1150 |
205Ω |
2050 |
365Ω |
3650 |
649Ω |
6490 |
|
11.8Ω |
11R8 |
21.0Ω |
21RO |
37.4Ω |
37R4 |
66.5Ω |
66RS |
118Ω |
1180 |
210Ω |
2100 |
374Ω |
3740 |
665Ω |
6650 |
|
12.1Ω |
12R1 |
21.5Ω |
21R5 |
38.3Ω |
38R3 |
68.1Ω |
68R1 |
121Ω |
1210 |
215Ω |
2150 |
383Ω |
3830 |
681Ω |
6810 |
|
12.4Ω |
12R4 |
22.1Ω |
22R1 |
39.2Ω |
39R2 |
69.8Ω |
69R8 |
124Ω |
1240 |
221Ω |
2210 |
392Ω |
3920 |
698Ω |
6980 |
|
12.7Ω |
12R7 |
22.6Ω |
22R6 |
40.2Ω |
40R2 |
71.5Ω |
71R5 |
127Ω |
1270 |
226Ω |
2260 |
402Ω |
4020 |
715Ω |
7150 |
|
13.0Ω |
13RO |
23.2Ω |
23R2 |
41.2Ω |
41R2 |
73.2Ω |
73R2 |
130Ω |
1300 |
232Ω |
2320 |
412Ω |
4120 |
732Ω |
7320 |
|
13.3Ω |
13R3 |
23.7Ω |
23R7 |
42.2Ω |
42R2 |
75.0Ω |
75R0 |
133Ω |
1330 |
237Ω |
2370 |
422Ω |
4220 |
750Ω |
7500 |
|
13.7Ω |
13R7 |
24.3Ω |
24R3 |
43.2Ω |
43R2 |
76.8Ω |
76R8 |
137Ω |
1370 |
243Ω |
2430 |
432Ω |
4320 |
768Ω |
7680 |
|
14.0Ω |
14R0 |
24.9Ω |
24R9 |
44.2Ω |
44R2 |
78.7Ω |
78R7 |
140Ω |
1400 |
249Ω |
2490 |
442Ω |
4420 |
787Ω |
7870 |
|
14.3Ω |
14R3 |
25.5Ω |
25R5 |
45.3Ω |
45R3 |
80.6Ω |
80R6 |
143Ω |
1430 |
255Ω |
2550 |
453Ω |
4530 |
806Ω |
8060 |
|
14.7Ω |
14R7 |
26.1Ω |
26R1 |
46.4Ω |
46R4 |
82.5Ω |
82R5 |
147Ω |
1470 |
261Ω |
2610 |
464Ω |
4640 |
825Ω |
8250 |
|
15.0Ω |
15R0 |
26.7Ω |
26R7 |
47.5Ω |
47R5 |
84.5Ω |
84R5 |
150Ω |
1500 |
267Ω |
2670 |
475Ω |
4750 |
845Ω |
8450 |
|
15.4Ω |
15R4 |
27.4Ω |
27R4 |
48.7Ω |
48R7 |
86.6Ω |
86R6 |
154Ω |
1540 |
274Ω |
2740 |
487Ω |
4870 |
866Ω |
8660 |
|
15.8Ω |
15R8 |
28.0Ω |
28R0 |
49.9Ω |
49R9 |
88.7Ω |
88R7 |
158Ω |
1580 |
280Ω |
2800 |
499Ω |
4990 |
887Ω |
8870 |
|
16.2Ω |
16R2 |
28.7Ω |
28R7 |
51.1Ω |
51R1 |
90.9Ω |
90R9 |
162Ω |
1620 |
287Ω |
2870 |
511Ω |
5110 |
909Ω |
9090 |
|
16.5Ω |
16R5 |
29.4Ω |
29R4 |
52.3Ω |
52R3 |
93.1Ω |
93R1 |
165Ω |
1650 |
294Ω |
2940 |
523Ω |
5230 |
931Ω |
9310 |
|
16.9Ω |
16R9 |
30.1Ω |
30R1 |
53.6Ω |
53R6 |
95.3Ω |
95R3 |
169Ω |
1690 |
301Ω |
3010 |
536Ω |
5360 |
953Ω |
9530 |
|
17.4Ω |
17R4 |
30.9Ω |
30R9 |
54.9Ω |
54R9 |
97.6Ω |
97R6 |
174Ω |
1740 |
309Ω |
3090 |
549Ω |
5490 |
976Ω |
9760 |
标准阻值Standard Nominal Resistance Values
|
阻值 Value |
代码 Code |
阻值 Value |
代码 Code |
阻值 Value |
代码 Code |
阻值 Value |
代码 Code |
阻值 Value |
代码 Code |
阻值 Value |
代码 Code |
阻值 Value |
代码 Code |
阻值 Value |
代码 Code |
|||
|
1.00K |
1001 |
2.37K |
2371 |
5.62K |
5621 |
13.3K |
1332 |
31.6K |
3162 |
75.0K |
7502 |
178K |
1783 |
422K |
4223 |
|||
|
1.02K |
1021 |
2.43K |
2431 |
5.76K |
5761 |
13.7K |
1372 |
32.4K |
3242 |
76.8K |
7682 |
182K |
1823 |
432K |
4323 |
|||
|
1.05K |
1051 |
2.49K |
2491 |
5.90K |
5901 |
14.0K |
1402 |
33.2K |
3322 |
78.7K |
7872 |
187K |
1873 |
442K |
4423 |
|||
|
1.07K |
1071 |
2.55K |
2551 |
6.04K |
6041 |
14.3K |
1432 |
34.0K |
3402 |
80.6K |
8062 |
191K |
1913 |
453K |
4533 |
|||
|
1.10K |
1101 |
2.61K |
2611 |
6.19K |
6191 |
14.7K |
1472 |
34.8K |
3482 |
82.5K |
8252 |
196K |
1963 |
464K |
4643 |
|||
|
1.13K |
1131 |
2.67K |
2671 |
6.34K |
6341 |
15.0K |
1502 |
35.7K |
3572 |
84.5K |
8452 |
200K |
2003 |
475K |
4753 |
|||
|
1.15K |
1151 |
2.74K |
2741 |
6.49K |
6491 |
15.4K |
1542 |
36.5K |
3652 |
86.6K |
8662 |
205K |
2053 |
487K |
4873 |
|||
|
1.18K |
1181 |
2.80K |
2801 |
6.65K |
6651 |
15.8K |
1582 |
37.4K |
3742 |
88.7K |
8872 |
210K |
2103 |
499K |
4993 |
|||
|
1.21K |
1211 |
2.87K |
2871 |
6.81K |
6811 |
16.2K |
1622 |
38.3K |
3832 |
90.9K |
9092 |
215K |
2153 |
511K |
5113 |
|||
|
1.24K |
1241 |
2.94K |
2941 |
6.98K |
6981 |
16.5K |
1652 |
39.2K |
3922 |
93.1K |
9312 |
221K |
2213 |
523K |
5233 |
|||
|
1.27K |
1271 |
3.01K |
3011 |
7.15K |
7151 |
16.9K |
1692 |
40.2K |
4022 |
95.3K |
9532 |
226K |
2263 |
536K |
5363 |
|||
|
1.30K |
1301 |
3.09K |
3091 |
7.32K |
7321 |
17.4K |
1742 |
41.2K |
4122 |
97.6K |
9762 |
232K |
2323 |
549K |
5493 |
|||
|
1.33K |
1331 |
3.16K |
3161 |
7.50K |
7501 |
17.8K |
1782 |
42.2K |
4222 |
100K |
1003 |
237K |
2373 |
562K |
5623 |
|||
|
1.37K |
1371 |
3.24K |
3241 |
7.68K |
7681 |
18.2K |
1822 |
43.2K |
4322 |
102K |
1023 |
243K |
2433 |
576K |
5763 |
|||
|
1.40K |
1401 |
3.32K |
3321 |
7.87K |
7871 |
18.7K |
1872 |
44.2K |
4422 |
105K |
1053 |
249K |
2493 |
590K |
5903 |
|||
|
1.43K |
1431 |
3.40K |
3401 |
8.06K |
8061 |
19.1K |
1912 |
45.3K |
4532 |
107K |
1073 |
255K |
2553 |
604K |
6043 |
|||
|
1.47K |
1471 |
3.48K |
3481 |
8.25K |
8251 |
19.6K |
1962 |
46.4K |
4642 |
110K |
1103 |
261K |
2613 |
619K |
6193 |
|||
|
1.50K |
1501 |
3.57K |
3571 |
8.45K |
8451 |
20.0K |
2002 |
47.5K |
4752 |
113K |
1133 |
267K |
2673 |
634K |
6343 |
|||
|
1.54K |
1541 |
3.65K |
3651 |
8.66K |
8661 |
20.5K |
2050 |
48.7K |
4872 |
115K |
1153 |
274K |
2743 |
649K |
6493 |
|||
|
1.58K |
1581 |
3.74K |
3741 |
8.87K |
8871 |
21.0K |
2102 |
49.9K |
4992 |
118K |
1183 |
280K |
2803 |
665K |
6653 |
|||
|
1.62K |
1621 |
3.83K |
3831 |
9.09K |
9091 |
21.5K |
2152 |
51.1K |
5112 |
121K |
1213 |
287K |
2873 |
681K |
6813 |
|||
|
1.65K |
1651 |
3.92K |
3921 |
9.31K |
9311 |
22.1K |
2212 |
52.3K |
5232 |
124K |
1243 |
294K |
2943 |
698K |
6983 |
|||
|
1.69K |
1691 |
4.02K |
4021 |
9.53K |
9531 |
22.6K |
2262 |
53.6K |
5362 |
127K |
1273 |
301K |
3013 |
715K |
7153 |
|||
|
1.74K |
1741 |
4.12K |
4121 |
9.76K |
9761 |
23.2K |
2322 |
54.9K |
5492 |
130K |
1303 |
309K |
3093 |
732K |
7323 |
|||
|
1.78K |
1781 |
4.22K |
4221 |
10.0K |
1002 |
23.7K |
2372 |
56.9K |
5622 |
133K |
1333 |
316K |
3163 |
750K |
7503 |
|||
|
1.82K |
1821 |
4.32K |
4321 |
10.2K |
1022 |
24.3K |
2432 |
57.6K |
5762 |
137K |
1373 |
324K |
3243 |
768K |
7683 |
|||
|
1.87K |
1871 |
4.42K |
4421 |
10.5K |
1052 |
24.9K |
2492 |
59.0K |
5902 |
140K |
1403 |
332K |
3323 |
787K |
7873 |
|||
|
1.91K |
1911 |
4.53K |
4531 |
10.7K |
1072 |
25.5K |
2552 |
60.4K |
6042 |
143K |
1433 |
340K |
3403 |
806K |
8063 |
|||
|
1.96K |
1961 |
4.64K |
4641 |
11.0K |
1102 |
26.1K |
2612 |
61.9K |
6192 |
147K |
1473 |
348K |
3483 |
825K |
8253 |
|||
|
2.00K |
2001 |
4.75K |
4751 |
11.3K |
1132 |
26.7K |
2672 |
63.4K |
6342 |
150K |
1503 |
357K |
3573 |
845K |
8453 |
|||
|
2.05K |
2051 |
4.87K |
4871 |
11.5K |
1152 |
27.4K |
2742 |
64.9K |
6492 |
154K |
1543 |
365K |
3653 |
866K |
8663 |
|||
|
2.10K |
2101 |
4.99K |
4991 |
11.8K |
1182 |
28.0K |
2802 |
66.5K |
6652 |
158K |
1583 |
374K |
3743 |
887K |
8873 |
|||
|
2.15K |
2151 |
5.11K |
5111 |
12.1K |
1212 |
28.7K |
2872 |
68.1K |
6812 |
162K |
1623 |
383K |
3833 |
909K |
9093 |
|||
|
2.21K |
2211 |
5.23K |
5231 |
12.4K |
1242 |
29.4K |
2942 |
69.8K |
6982 |
165K |
1653 |
392K |
3923 |
931K |
9313 |
|||
|
2.26K |
2261 |
5.36K |
5361 |
12.7K |
1272 |
30.1K |
3012 |
71.5K |
7152 |
169K |
1693 |
402K |
4023 |
953K |
9533 |
|||
|
2.32K |
2321 |
5.49K |
5491 |
13.0K |
1302 |
30.9K |
3092 |
73.2K |
7322 |
174K |
1743 |
412K |
4123 |
976K |
9763 |
|||
|
以上所有阻值都是标准阻值,其他阻值可以特别提供,但有相应MOQ之要求。All values shown above are standard |
1M |
1004 |
||||||||||||||||
|
resistance values,other values could also be provided on a case to case basis(MOQ requested) |
|
|
||||||||||||||||
|
清空对比栏
